MISSED BY OTHERS, DETECTED BY US
Genomic Unity® Case Study

Partial exon deletion explains clinical Rett syndrome diagnosis

Clinical presentation

A 9-year-old female with a clinical diagnosis of Rett syndrome presented with a history of global developmental delay with regression and an array of symptoms:

  • Microcephaly
  • Quadriparesis and quadriplegia with a history of infantile hypotonia
  • Seizures and tremors
  • Nonverbal with a history of speech difficulty

Previous genetic testing

Multiple tests were performed with negative results including:

  • Chromosomal microarray (x2)
  • Epilepsy panel
  • Rett/Angelman syndrome panel, PWS/AS methylation
  • SCN1A and MTHFR gene sequencing
  • Whole exome sequencing, multiple reanalyses
  • Whole genome sequencing

Genomic Unity® Testing

was ordered because of its ability to identify all major variant types in a single test.

Genomic Unity® Testing

Variantyx Genomic Unity® testing identified a heterozygous, pathogenic 453bp deletion affecting the final exon of the MECP2 gene.

The deletion is predicted to result in absent or dysfunctional protein.

Diagnosis: Rett syndrome

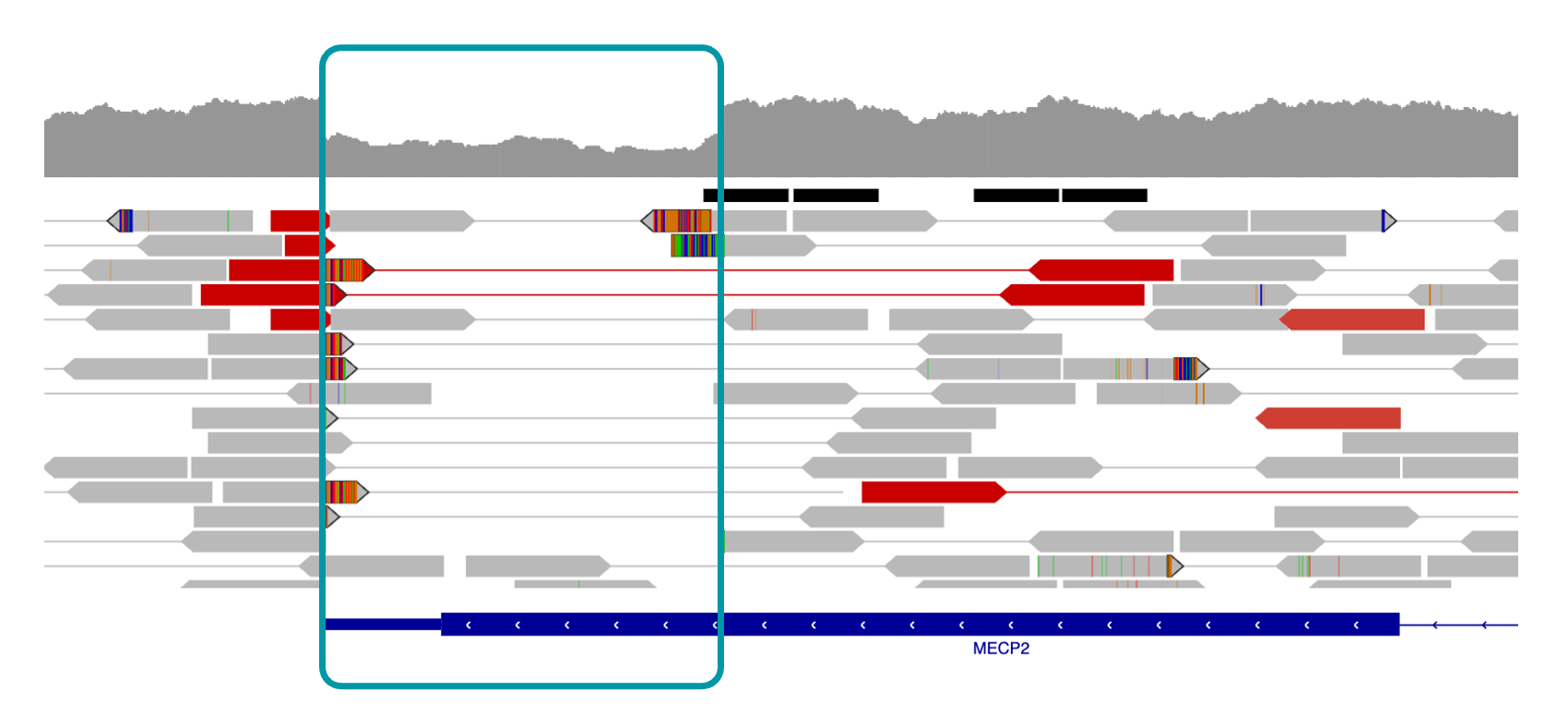

IGV view of MECP2 deletion

Uniform data from PCR-free WGS clearly shows the 453bp partial exon deletion.

The Variantyx Difference

Why was this partial exon deletion detected by Genomic Unity® testing, and not detected by other tests?

  • CMA tests are unable to detect deletions smaller than 25kb.

  • Targeted tests like the epilepsy and Rett/Angelman syndrome panels ordered are typically unable to detect deletions smaller than 500bp.

  • Exomes are typically unable to detect deletions smaller than 3 exons in size, particularly in poorly covered regions such as this region of MECP2.

  • Other genome analyses are typically unable to detect deletions smaller than 1kb.
    Variantyx genome analysis has a detection range from 1bp to whole chromosomal events, easily detecting this 453bp deletion.

  • One of the deletion breakpoints is intronic, adding to the complexity of detection.
    Variantyx genome analysis includes intronic regions, enabling breakpoint detection regardless of location.
